Three layer rotary kiln drum dryer

  • Capacity: 1-8t/h
  • Fuel: coal, gas, wood chips, pellet and any agriculture waste
  • Type:rotary kiln drum dryer
  • Product description: Three layer rotary kiln drum dryer, use for drying wet sawdust, wood chips etc, e-mail: info@astarmachine.com whatsapp: 0086 15178920906
  • INQUIRY

Three layer rotary kiln drum dryer

Rotary dryer :

1. The design of three layer composite structure makes materials dried for three times in the dryer, high output and low energy consumption .

2.Multi-layered structure improves heat preservation effect in the drying cylinder and improves heat utilization .

3.The rolling speed of the dryer is adjustable, high-precision gear transmission and smooth operation .

4.The stove is in optimized design with new structure.

5.Gas collection system is equipped to prevent flames into the drying cylinder.

6.Water cooling suction air fan makes sure the fan lifetime .

7.Heat recovery system cab be equipped.

Model

MGZG1600

MGZG1800

MGZG2100

MGZG2400

MGZG2800

Power(kw)

5.5

8

8

22

30

Capacity (t/h)

1-1.5

1.5-2.5

2.5-3.5

3.5-5

5-8

Drum diameter(mm)

1900

2100

2400

2900

3500

Drum length (mm)

8000

9000

10000

12000

16000

Airfan model

Y5-47-11D

Y5-47-11D

Y5-47-11D

Y5-47-12.4D

Y5-47-12.4D

Matched airfan power

22

30

55

75

90

Hourly Heat stove(Kcal)

900

1200

1800

3000

5000

Matched cyclone quantity

1

2

4

4

6

Notes: the temperature requirement for the air inflow to drying cylinder is to be 280-350℃,the capacity is based on the powder raw material with 30%-50% moisture content.

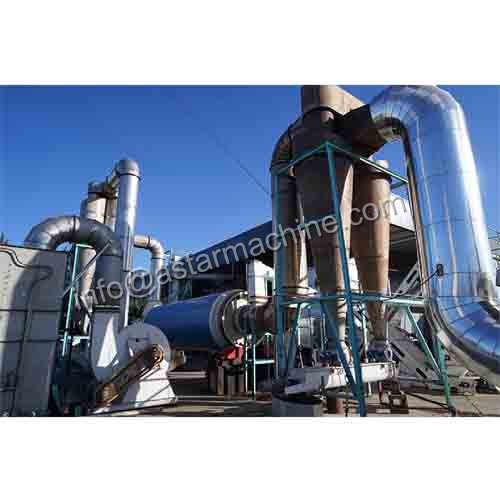

Three layer rotary kiln drum dryer more photos:
