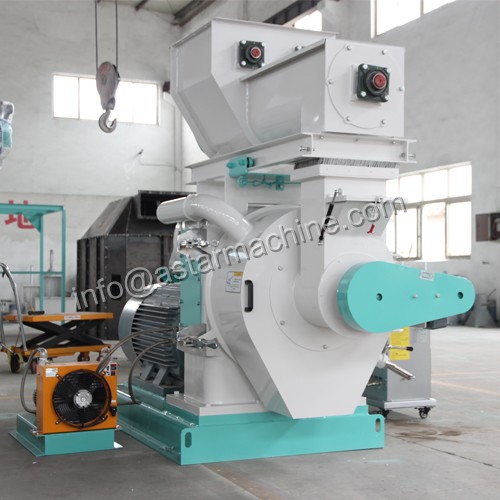

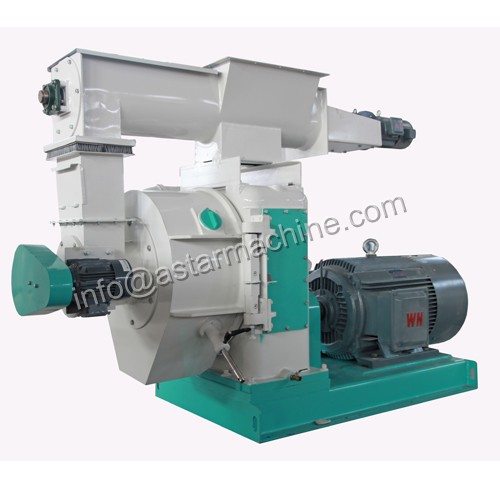

Ring die wood pellet machine

  • Capacity: 500-3000kg/h
  • Pellet size:6,8,10,12mm
  • Power:55/75/90/110/132/160kw
  • Type: ring die wood pellet machine
  • Product description: Ring die wood pellet machine
  • INQUIRY

Ring die wood pellet machine

Ring die wood pellet machine description:

1. Unique forced feeder, reinforced transmission parts, special ring die mould, rollers and hopps are adopted .

2. The main gear transmission with high precision contributes to stable and reliable operation.

3. The bearings and oil sealing imported are with high quality, which makes sure efficient, stable and little noisy running, the pelletizing chamber is equipped with wind suction cooling system .

4. Frequency control motor is adopted for the forced feeder to ensure the quality of the final material.

5. Compensated falk flexible coupling had a novel and compaxt structure, sale performance, little noise and low failure performance produced when working .

Main Data:

Model

MZLH35

MZLH420

MZLH508

MZLH558

MZLH678

MZLH768

Capacity

0.6T/H

1T/H

1.5T/H

1.8-2T/H

3T/H

4T/H

Main Motor Power

55kw

90kw

110kw

132kw

220kw

315kw

Feeder Motor Power

1.5kw

2.2kw

2.2kw

2.2kw

3kw

4kw

Force Feeder Power

0.75kw

1.1kw

1.1kw

1.1kw

1.5kw

2.2kw

Diameter of ring die

350mm

420mm

508mm

558mm

678mm

768mm

Ring Die speed

150rpm

150 rpm

150rpm

150rpm

150rpm

150rpm

Feeder speed

12-120rpm

Pellet Size

6,8,10,12mm etc

Press Roller Qty

2

Noise

86dB(A)

90dB(A)

Die working termpreature

85


Ring die wood pellet machine more photos:

Gear oil cooling device

Automatic lubrication grease add machine

How the lubrication machine connect with wood pellet machine

Lubrication grease storage tank

Ring die lifting device

shear pin installed with wood pellet machine

cutter device

Complete wood pellet line

wood pellet line flow chart
